- PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
OD Size(in) :3"-14"
IMPLEMENTATION OF STANDARDS
- API 8C
PRODUCT DESCRIPTION

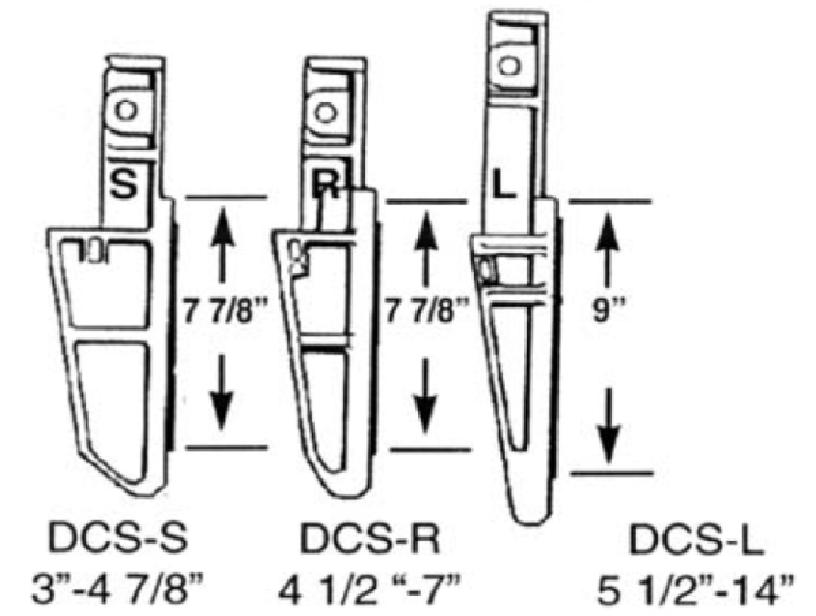

Drill Collar Slip | DCS-S | DCS-R | DCS-L | |||||||||
OD Size(in.) | 3"-4" | 4"-4 7/8" | 4 1/2" 6" | 5 1/2"-7" | 6 3/4"- 8 1/4" | 8"- 9 1/2" | 8 1/2"-10" | 9 1/4"- 11 1/4" | 11"- 12 3/4" | 12"-14" | ||
P/N Slip w/insert | 2572 | 2573 | 2552 | 2550 | 2503 | 2507 | 2530 | 2508 | 2534 | 2536 | ||
P/N Circular Buttons- Qty | 2628-49 | 2620-49 | 2628-63 | 2620-63 | 2630-88 | 2630-96 | 2627-104 | 2630-112 | 2625-136 | 2630-136 | ||
Wt set insert-Ibs (kg) | 13(6) | 8(3.5) | 16(7) | 11(5) | 15(7) | 16(7) | 26(12) | 19(8.5) | 13(6) | 16(7) | ||
Hinge Pin c/w Cotter Pin | 2525 | 2520 | ||||||||||
Handle c/w Washer Cotter Pin | 3769 | |||||||||||
Right & Left Handle | 3765 | |||||||||||
Center Handle | 3766 | |||||||||||
Use in insert Bowl No. | API or No.3 | No.2 | No.1 | |||||||||
